| Place of Origin: | CHINA |
|---|---|
| اسم العلامة التجارية: | EVERSUN |
| إصدار الشهادات: | ISO,CE |
| Model Number: | EXZS |
| Minimum Order Quantity: | 1set |
| الأسعار: | قابل للتفاوض |
| Packaging Details: | Standard export wooden cases |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability: | 5000set/year |
| Features: | High efficiency, low maintenance, easy to operate | Usage: | Industry |
|---|---|---|---|
| Screen Layer: | 1-5 Layers | Screening Mesh Size: | 2-500 mesh |
| Maintenance: | Easy and low cost | Customization: | Available for specific requirements |
| Function: | Screening\separation\sorting\sieving | Screen Material: | Stainless Steel Woven Mesh |
| Color: | Customers' Request | Keyword: | Multi-layer screening machine |
Product description
The rotary vibrating screen is a precise screening equipment that uses a vertical motor to drive the upper and lower eccentric weights, causing the screen surface to generate three-dimensional compound vibrations in the horizontal, vertical and inclined directions. This enables the material to diffuse in a spiral motion from the center to the edge, thereby achieving fine particles passing through the screen and coarse particles being discharged. Its features include high screening efficiency (up to 200 mesh), compact structure and easy maintenance, as well as strong parameter adjustability and compatibility. It is widely used in the classification treatment of granular and powdered materials in industries such as chemical engineering, food, and medicine.
Working principle
The working principle of the rotary vibrating screen is similar to the "artistic shaking" when sifting with a sieve: the vertical motor in the middle drives the upper and lower two eccentric heavy hammers to rotate, and the upper heavy hammer makes the screen surface shake horizontally like a circle, pushing the material out in all directions. The heavy hammer below makes the screen surface bounce up and down with a slight oblique throwing force, causing the material to spiral and move forward on the screen surface at the same time. At this point, fine materials fall through the sieve like flour, while coarse materials are "shaken" to the edge outlet and discharged. Through this "shaking and running" method, material classification is achieved. Moreover, it can adjust the Angle and force of the heavy hammer. When sifting sand, it shakes vigorously; when sifting medicinal powder, it shakes lightly. It is particularly flexible.
Features & Benefits
- Flexible and adjustable: By adjusting the Angle, weight or rotational speed of the counterweight, it can be adapted to the characteristics of different materials, achieving "one machine with multiple uses".
- Compact and easy to maintain: Small footprint, modular structure, screen replacement only takes 10 minutes, and the average annual maintenance cost is low.
- Environmental compatibility: Fully sealed design for dust control, noise ≤75 decibels, suitable for material screening in multiple industries such as chemical engineering, food, and medicine.
- High efficiency and precision: Three-dimensional vibration enhances the screening efficiency by 30%, capable of screening up to 200 mesh. The anti-clogging net design is suitable for wet and sticky materials.
Product parameter
| Model | Equipment diameter | Power(KW) | Deck | Effective screening area(m2) | Screen mesh |
| EXZS-600 | 600mm/24inch | 0.25 | 1-5 | 0.2289 | 20 microns to 20 mm |
| EXZS-800 | 800mm/32inch | 0.55 | 0.4183 | ||
| EXZS-1000 | 1000mm/40inch | 0.75 | 0.6359 | ||
| EXZS-1200 | 1200mm/48inch | 1.1 | 0.9499 | ||
| EXZS-1500 | 1500mm/60inch | 1.5 | 1.5386 | ||
| EXZS-1800 | 1800mm/70inch | 3 | 1-4 | 2.2687 | |
| EXZS-2000 | 2000mm/78inch | 4.5 | 2.8893 |
Design Drawing Display
Detail display

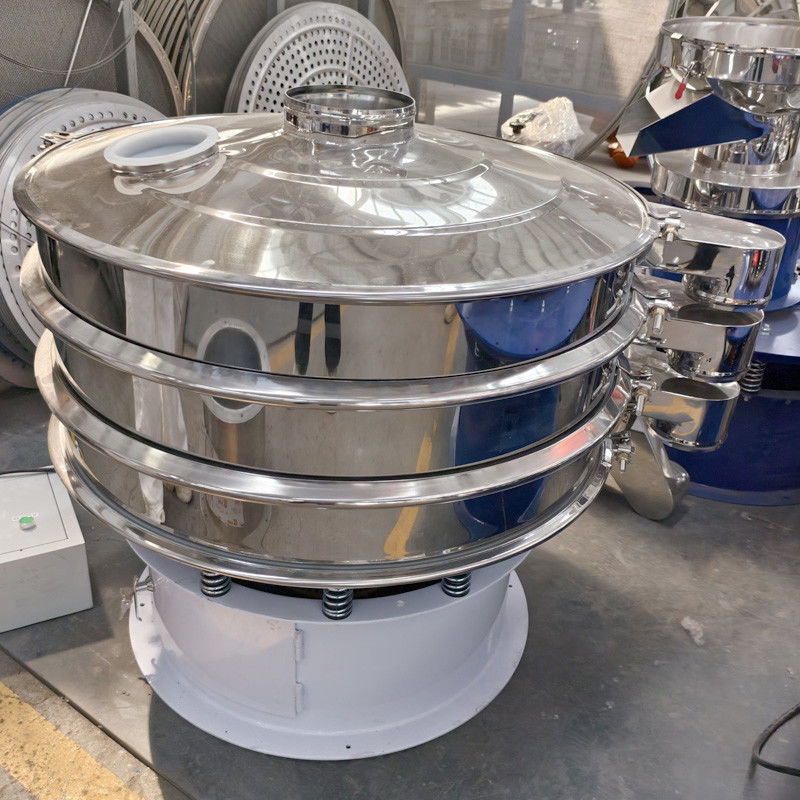

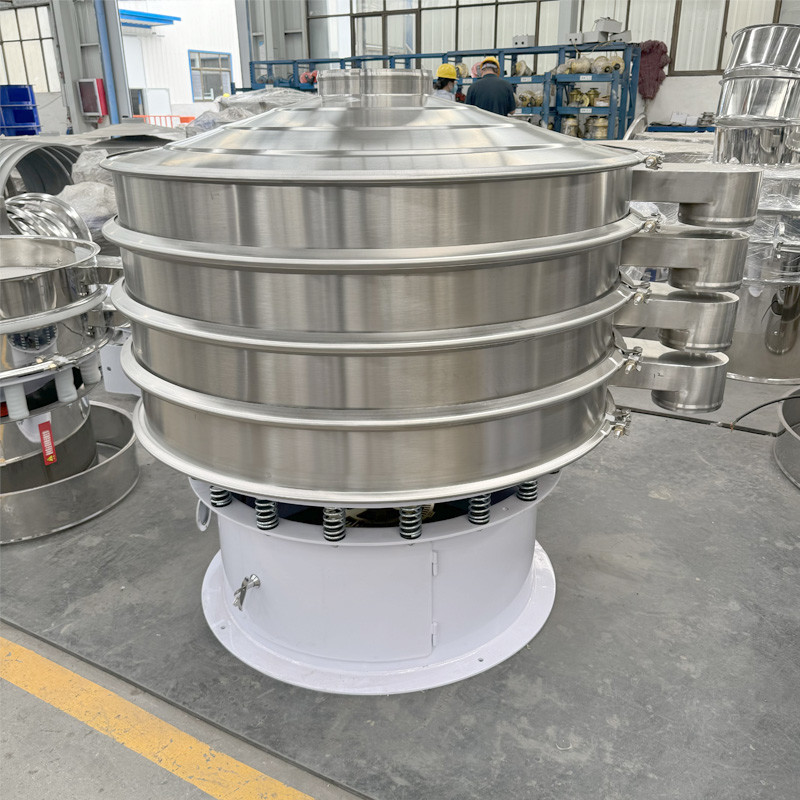

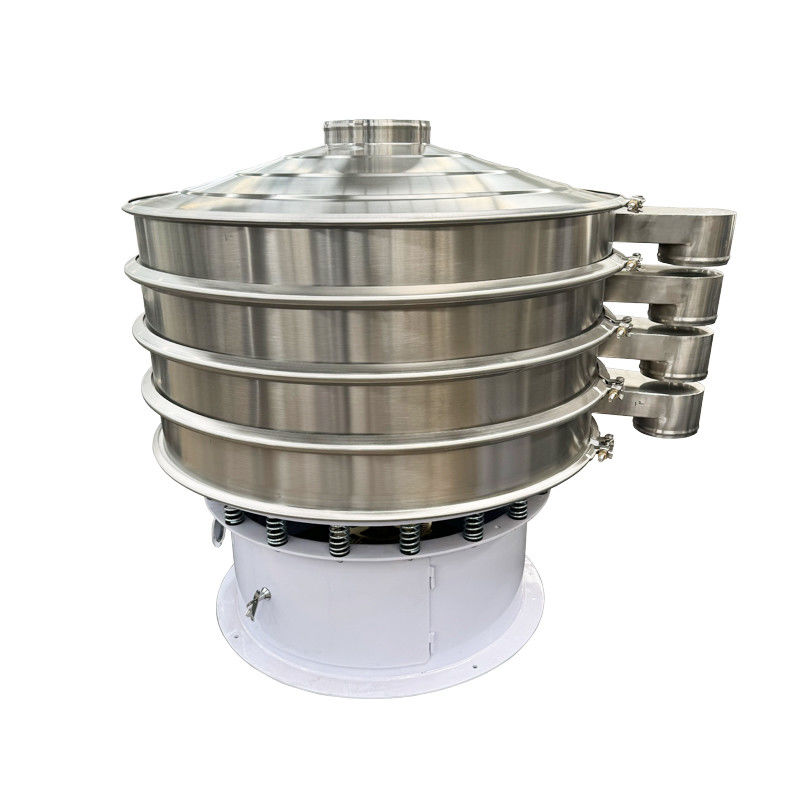

Product display
