| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | EVERSUN |
| إصدار الشهادات: | ISO,CE |
| رقم الموديل: | الخامس |
| الحد الأدنى لكمية: | 1Set |
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حالات خشبية تصدير قياسية |
| وقت التسليم: | في غضون 7-15 أيام عمل |
| شروط الدفع: | L/C ، D/A ، D/P ، T/T ، Moneygram ، Western Union |
| القدرة على العرض: | 5000Set/سنة |
| مقدار: | 50 لتر - 5000 لتر | وظيفة: | خلاط خلاط |
|---|---|---|---|
| وزن: | 120-2300 كجم | طلب: | خلط مواد المسحوق الجاف |
| نوع القيادة: | كهربائي | سمات: | حاوية على شكل حرف V ، شفرات خلط الحلزون المزدوجة ، سرعة الخلط القابلة للتعديل |
| ضوضاء: | ≤80db | النوع الديناميكي: | كهربائي |
| نوع المنتج: | مسحوق و حبيبات | البعد: | قابل للتخصيص |
| مادة: | الفولاذ المقاوم للصدأ | مزود الطاقة: | 220V/380V |
| نموذج: | خلاط مسحوق نوع V |

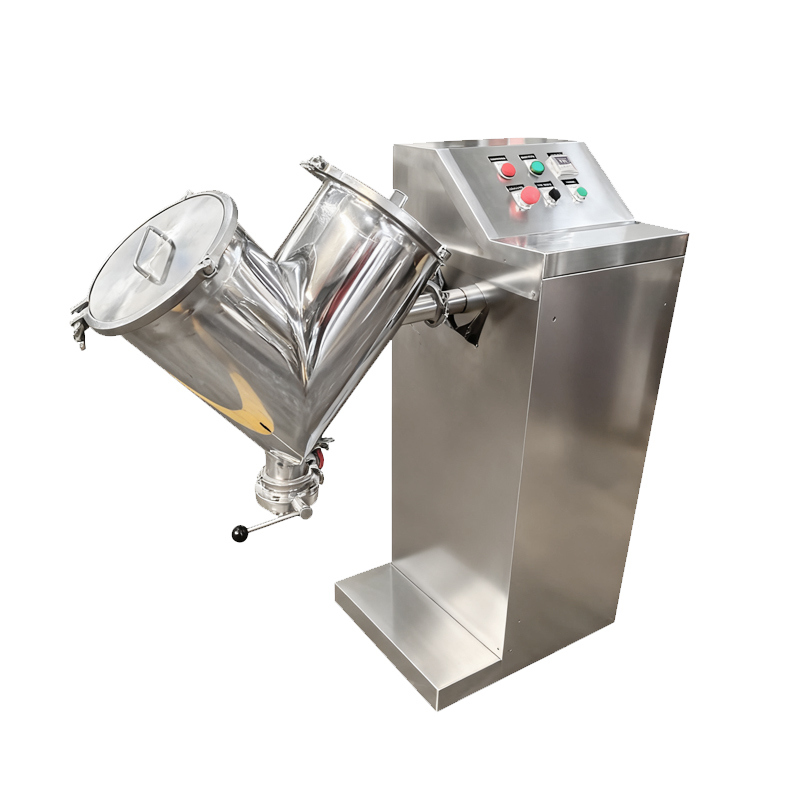

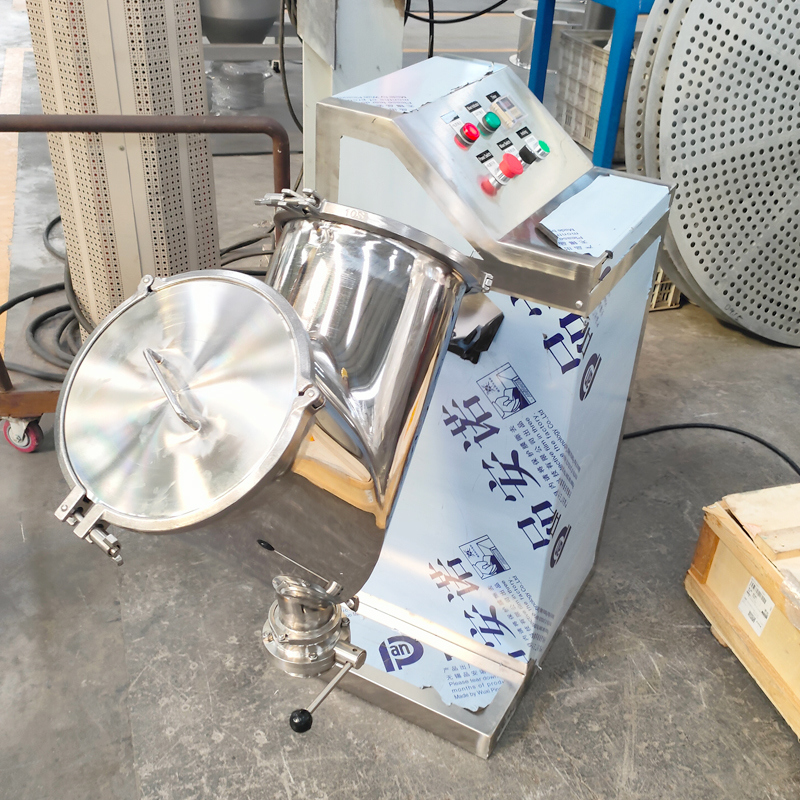

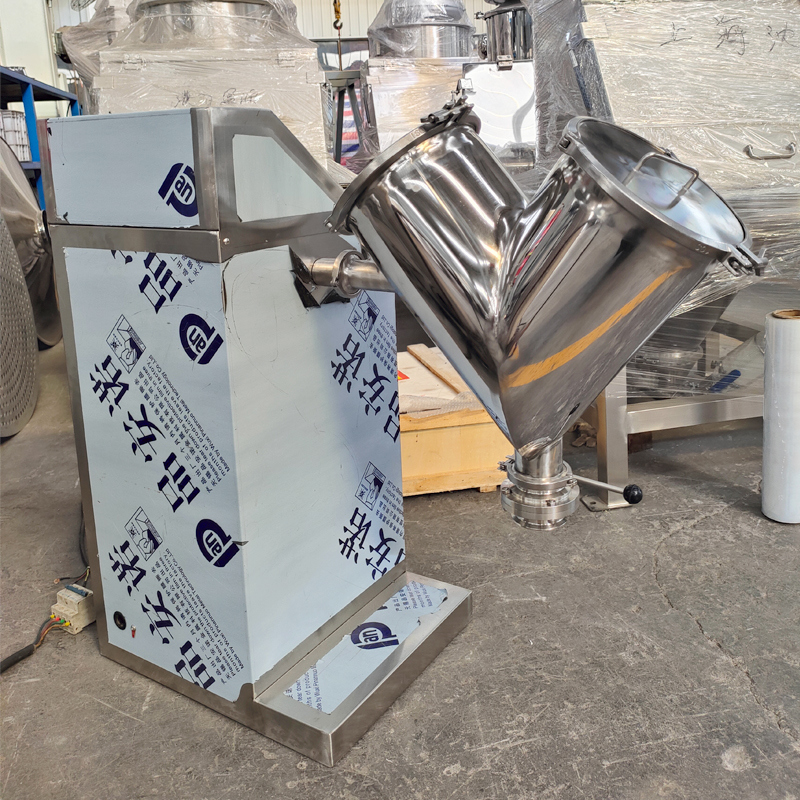

V-Type Mixer
Product Description
The V-shaped mixer is a commonly used equipment for mixing powder and granular materials. It is named so because its body is in the shape of a V. By using the rotation of the V-shaped cylinder, the material alternately undergoes separation, convergence and flipping within the cylinder, achieving uniform mixing. The mixing uniformity is high and there are no dead corners.
The equipment has a simple structure, consisting of a V-shaped mixing cylinder, a transmission mechanism, a frame, etc. It is easy to operate and is suitable for the pharmaceutical, food, and chemical industries, especially for materials with good流动性 and small differences in mixing ratios. The single mixing volume can be selected according to different specifications of models as per the requirements.
Working Principle
The working principle of the V-shaped mixer is to utilize the rotation of the cylinder body and its special structure to drive the material to move in multiple directions, achieving uniform mixing. When the cylinder body rotates, the material rises along the wall and then falls due to gravity, being asymmetrically divided by the V-shaped branch pipes; subsequently, the materials from the two pipes periodically converge and intersect at the bottom; through the process of rising, falling, dividing, and converging repeatedly, the material is continuously stirred and diffused, reducing dead corners, and ultimately achieving efficient mixing, suitable for powders and particles with good fluidity.
Product features
1. High and uniform mixing efficiency: The V-shaped structure reduces mixing dead zones, and the materials undergo a "separation-merging" cycle for thorough mixing. The mixing uniformity is far superior to that of straight-tube equipment, especially suitable for powders and particles with good fluidity.
2. Simple structure and easy operation: The core consists of a V-shaped cylinder and a transmission mechanism, without complex components. It is convenient for disassembly, cleaning, and reduces the difficulty of operation and maintenance.
3. Wide applicability: It is suitable for multiple industries such as pharmaceuticals, food, and chemicals. Different specification models can be selected according to requirements to meet the mixing needs of different batch sizes of materials.
4. Minimal damage to materials: Low-speed rotation operation, without strong stirring components, can reduce material fragmentation and wear, protecting the original properties of the materials.
Product Parameters
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
