| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | EVERSUN |
| إصدار الشهادات: | ISO,CE |
| رقم الموديل: | DZSF |
| الحد الأدنى لكمية: | 1 مجموعة |
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حالات خشبية التصدير القياسية |
| وقت التسليم: | في غضون 7-15 يوم عمل |
| شروط الدفع: | خطاب الاعتماد، D/A، D/P، T/T، موني جرام، ويسترن يونيون |
| القدرة على العرض: | 5000 مجموعة / سنة |
| حركة: | خطي | الاستخدام: | فحص الجسيمات الدقيقة |
|---|---|---|---|
| زاوية التذبذب: | 45~60 درجة | التطبيق: | معالجة المعادن ، الفحم ، الصناعة الكيميائية |
| الكلمة الرئيسية: | مستطيل الشاشة الهزاز | وضع التشغيل: | تلقائي |
| طبقة النخل: | تناسب | حالة: | حالة جديدة |
| لون: | وفقا لمتطلبات العملاء | الجهاز المحرك: | تهتز المحرك |
| مواد: | الصلب الكربوني ، SUS304 ، SUS316L | الجهد االكهربى: | 380 فولت |
| وظيفة: | الفحص | مادة الشاشة: | الفولاذ المقاوم للصدأ/الصلب الكربوني |

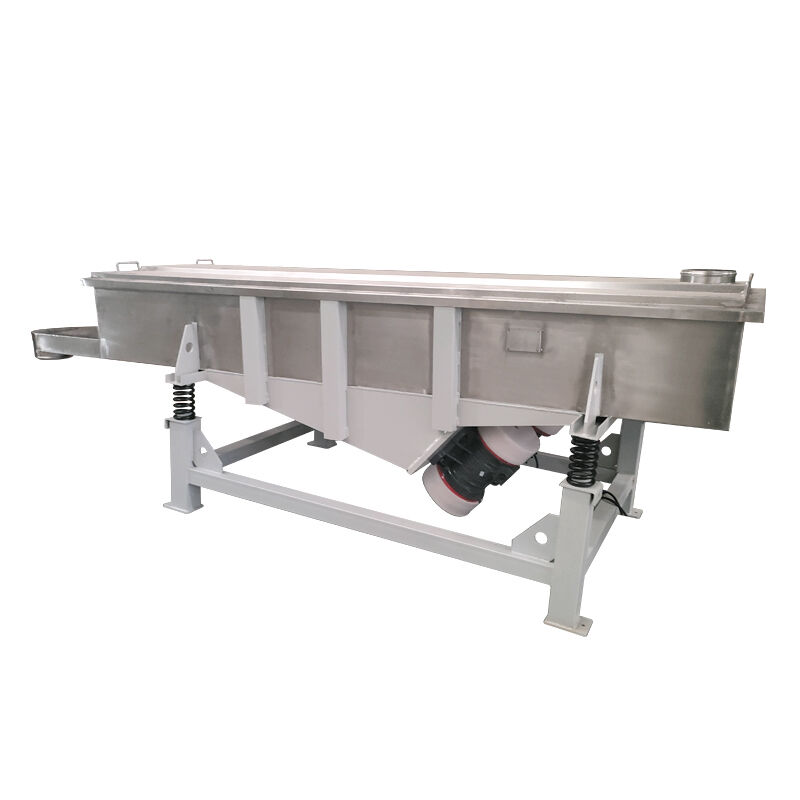

Product description
The linear screen is an efficient screening equipment designed based on the principle of linear vibration. Its screen surface performs a directional linear reciprocating motion, featuring a simple structure, stable operation, large processing capacity, and convenient maintenance. This equipment effectively controls dust through a fully enclosed structure and is widely used in material classification, dehydration, and impurity removal operations in the fields of building materials, chemicals, and grain processing. It is a reliable choice for large-scale continuous screening production.
Working principle
The working principle of the linear screen is based on directional mechanical vibration. The equipment has two symmetrical vibrating motors installed on opposite sides, which rotate in opposite directions synchronously to generate a combined excitation force along a specific direction on the screen surface. This force drives the screen box and the screen mesh to perform uniform reciprocating linear motion.
The materials placed on the sieve are continuously slightly lifted by the linear vibration force and advance forward along the parabolic trajectory. During this process, the materials keep rolling and spreading. The fine particles sink due to gravity and pass through the sieve holes to achieve separation, while the coarse particles are transported along the sieve surface to the discharge port, thus completing the entire screening process efficiently and continuously.
Product features
1. Large processing capacity: The material moves smoothly in a straight line, suitable for large-scale continuous screening of medium and coarse particles.
2. Reliable operation: The structure is simple, the dual-motor drive is stable, it has little impact on the foundation, and the failure rate is low.
3. Easy maintenance: There are few core components, daily maintenance and replacement of the screen mesh are convenient, and the overall usage cost is low.
4. Flexible adjustment: The vibration parameters can be adjusted to optimize the movement of the material, balancing the output and screening accuracy.
5. Good sealing performance: It is easy to achieve a fully enclosed design, effectively preventing dust, and meeting environmental protection requirements.
6. Strong versatility: Widely used in dry and wet screening and dehydration operations in industries such as mining, building materials, chemicals, and grains.
Product parameter
| Model | Layer | Screening Area(mm) |
Mesh size(mm) | Particle Size(mm) |
Capacity(t/h) | Power (kw) |
Double Amplitude(mm) |
| DZSF-612 | 1 to 5 | 600*1200 | 0.02-20 | ≤20 | ≤3 | 0.37×2 | 6 to 10 |
| DZSF-520 | 1 to 5 | 500*2000 | 0.02-20 | ≤20 | ≤5 | 0.37×2 | 6 to 10 |
| DZSF-525 | 1 to 5 | 500*2500 | 0.02-20 | ≤20 | ≤8 | 0.37×2 | 6 to 10 |
| DZSF-1020 | 1 to 5 | 1000*2000 | 0.02-20 | ≤20 | ≤12 | 0.75×2 | 6 to 10 |
| DZSF-1025 | 1 to 5 | 1000*2500 | 0.02-20 | ≤20 | ≤16 | 0.75×2 | 6 to 10 |
| DZSF-1030 | 1 to 5 | 1000*3000 | 0.02-20 | ≤20 | ≤20 | 1.1×2 | 6 to 10 |
| DZSF-1224 | 1 to 5 | 1200*2400 | 0.02-20 | ≤20 | ≤23 | 1.5×2 | 6 to 10 |
| DZSF-1525 | 1 to 5 | 1500*2500 | 0.02-20 | ≤20 | ≤28 | 1.5×2 | 6 to 10 |
| DZSF-1530 | 1 to 5 | 1500*3000 | 0.02-20 | ≤20 | ≤32 | 2.2×2 | 6 to 10 |
Production line diagram
1.Forklift filling the material into the storage hopper
2.A belt conveyor under the hopper, to transport the material to a linear vibrating screen
3.And another belt conveyor can transport the sieved material to other place
4.The belt conveyor can with dust cover and can add wheels
Product details

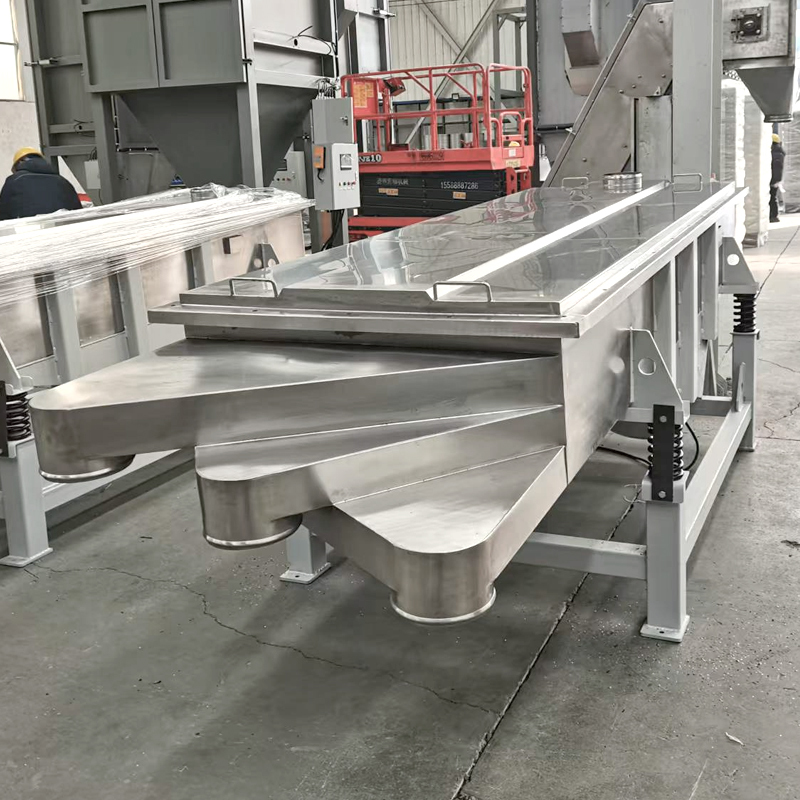

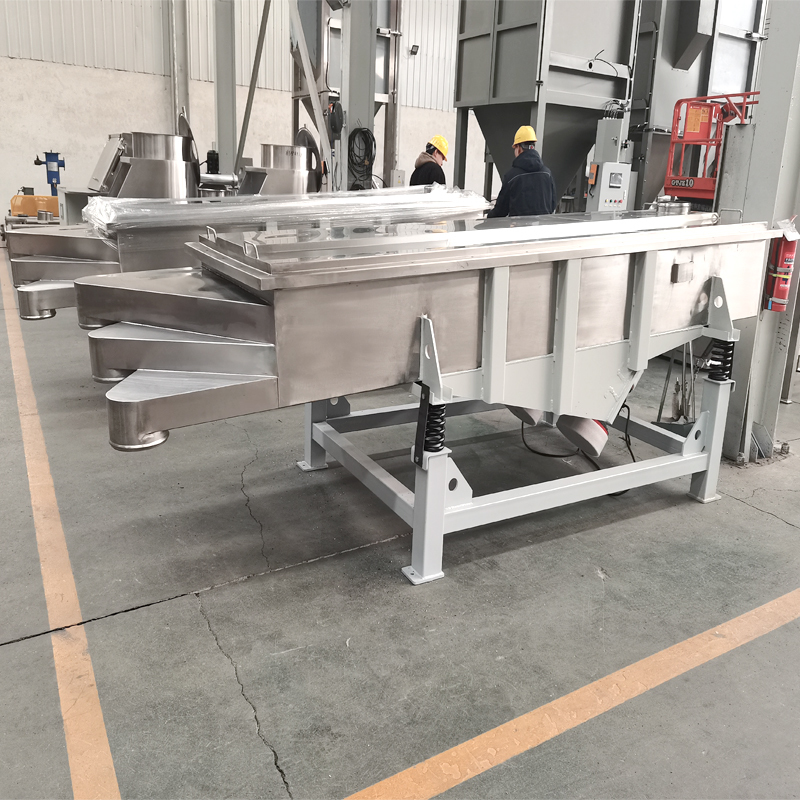

Product shows
