| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | EVERSUN |
| إصدار الشهادات: | ISO,CE |
| رقم الموديل: | DZSF |
| الحد الأدنى لكمية: | 1 مجموعة |
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حالات خشبية التصدير القياسية |
| وقت التسليم: | في غضون 7-15 يوم عمل |
| شروط الدفع: | خطاب الاعتماد، D/A، D/P، T/T، موني جرام، ويسترن يونيون |
| القدرة على العرض: | 5000 مجموعة / سنة |
| حركة: | خطي | الاستخدام: | فحص الجسيمات الدقيقة |
|---|---|---|---|
| زاوية التذبذب: | 45~60 درجة | طلب: | معالجة المعادن ، الفحم ، الصناعة الكيميائية |
| الكلمة الرئيسية: | مستطيل الشاشة الهزاز | وضع التشغيل: | تلقائي |
| لون: | وفقا لمتطلبات العملاء | الجهاز المحرك: | تهتز المحرك |
| مواد: | الصلب الكربوني ، SUS304 ، SUS316L | وظيفة: | الفحص |
| مادة الشاشة: | الفولاذ المقاوم للصدأ/الصلب الكربوني |

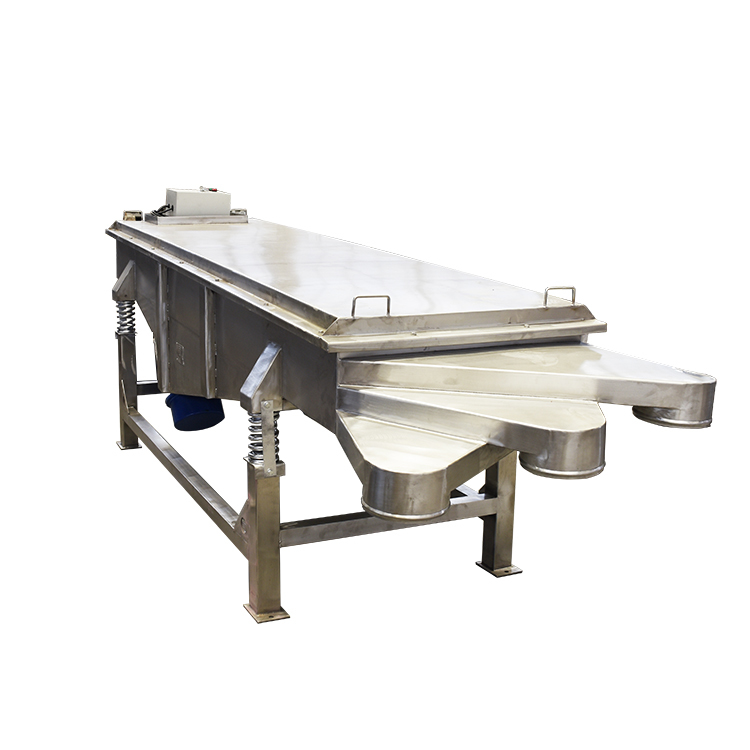

Product description
The straight screen is an efficient vibrating screening equipment. By installing screens of different mesh sizes, it can accurately perform automatic classification and impurity removal for powdery and granular materials, and is widely used in industries such as food and chemical.
Working principle
The linear screen utilizes two vibration motors as the excitation sources. These two motors rotate in opposite directions synchronously, and the excitation forces they generate cancel each other out in the horizontal direction while adding up in the vertical direction. This forces the screen box to drive the screen mesh to move in a straight line. After the materials enter the screen machine, under the action of the linear reciprocating motion, they jump forward. Materials smaller than the sieve holes pass through the screen mesh and fall down, achieving classification. While larger particles are discharged from the discharge port.
Product features
Large processing capacity: The material is conveyed quickly, and the processing capacity per unit time is outstanding.
Precise screening: The materials jump forward, and it is less likely to block the holes, resulting in excellent classification effect.
Sealed and environmentally friendly: The fully enclosed structure effectively prevents dust from spilling out.
Easy maintenance: The structure is simple, and it is easy to disassemble and replace the screen mesh.
Widely applicable: It can effectively handle various powdered and granular materials.
Product parameter
| Model | Screening Area(mm) |
Mesh size(mm) | Particle Size(mm) |
Capacity(t/h) | Power (kw) |
Double Amplitude(mm) |
| DZSF-612 | 600*1200 | 0.02-20 | ≤20 | ≤3 | 0.37×2 | 6 to 10 |
| DZSF-520 | 500*2000 | 0.02-20 | ≤20 | ≤5 | 0.37×2 | 6 to 10 |
| DZSF-525 | 500*2500 | 0.02-20 | ≤20 | ≤8 | 0.37×2 | 6 to 10 |
| DZSF-1020 | 1000*2000 | 0.02-20 | ≤20 | ≤12 | 0.75×2 | 6 to 10 |
| DZSF-1025 | 1000*2500 | 0.02-20 | ≤20 | ≤16 | 0.75×2 | 6 to 10 |
| DZSF-1030 | 1000*3000 | 0.02-20 | ≤20 | ≤20 | 1.1×2 | 6 to 10 |
| DZSF-1224 | 1200*2400 | 0.02-20 | ≤20 | ≤23 | 1.5×2 | 6 to 10 |
| DZSF-1525 | 1500*2500 | 0.02-20 | ≤20 | ≤28 | 1.5×2 | 6 to 10 |
| DZSF-1530 | 1500*3000 | 0.02-20 | ≤20 | ≤32 | 2.2×2 | 6 to 10 |
Production line diagram
1.Forklift filling the material into the storage hopper
2.A belt conveyor under the hopper, to transport the material to a linear vibrating screen
3.And another belt conveyor can transport the sieved material to other place
4.The belt conveyor can with dust cover and can add wheels

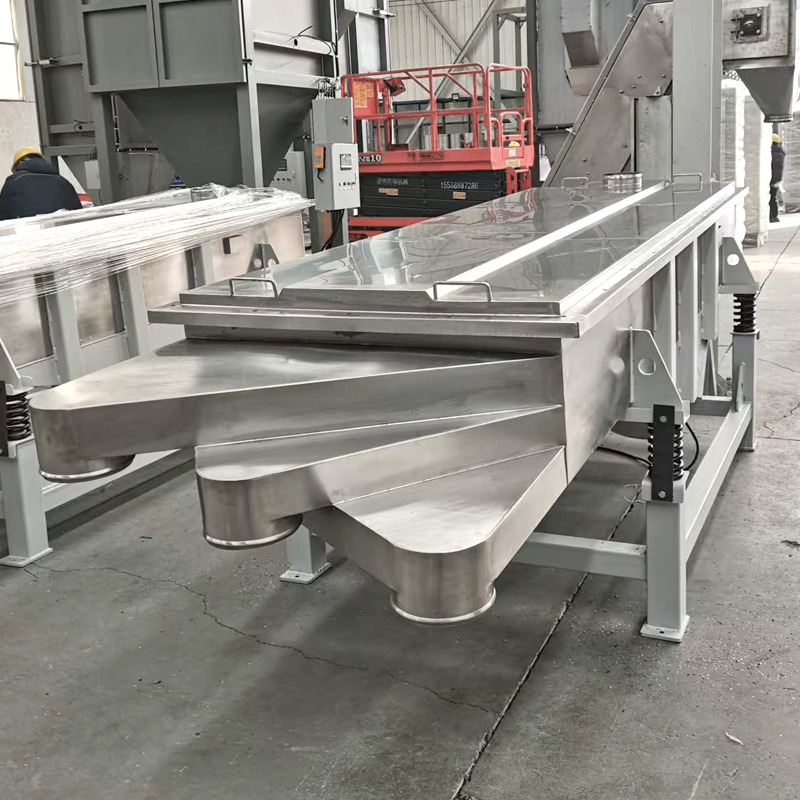

Product details

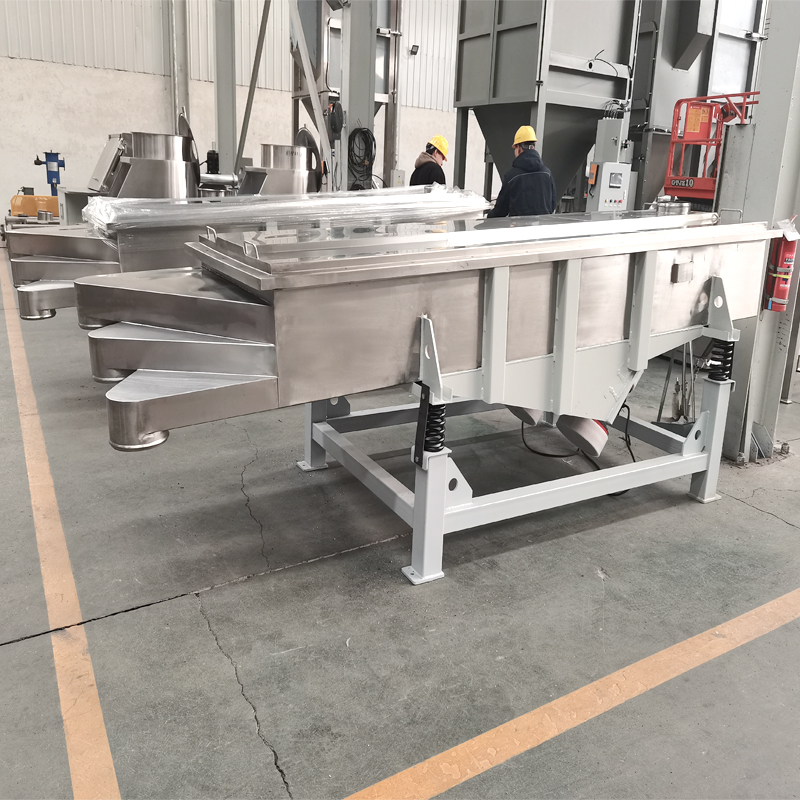

Product shows
